ME18C

  • ME18C
  • ME18C
  • ME18C
  • ME18C
  • ME18C

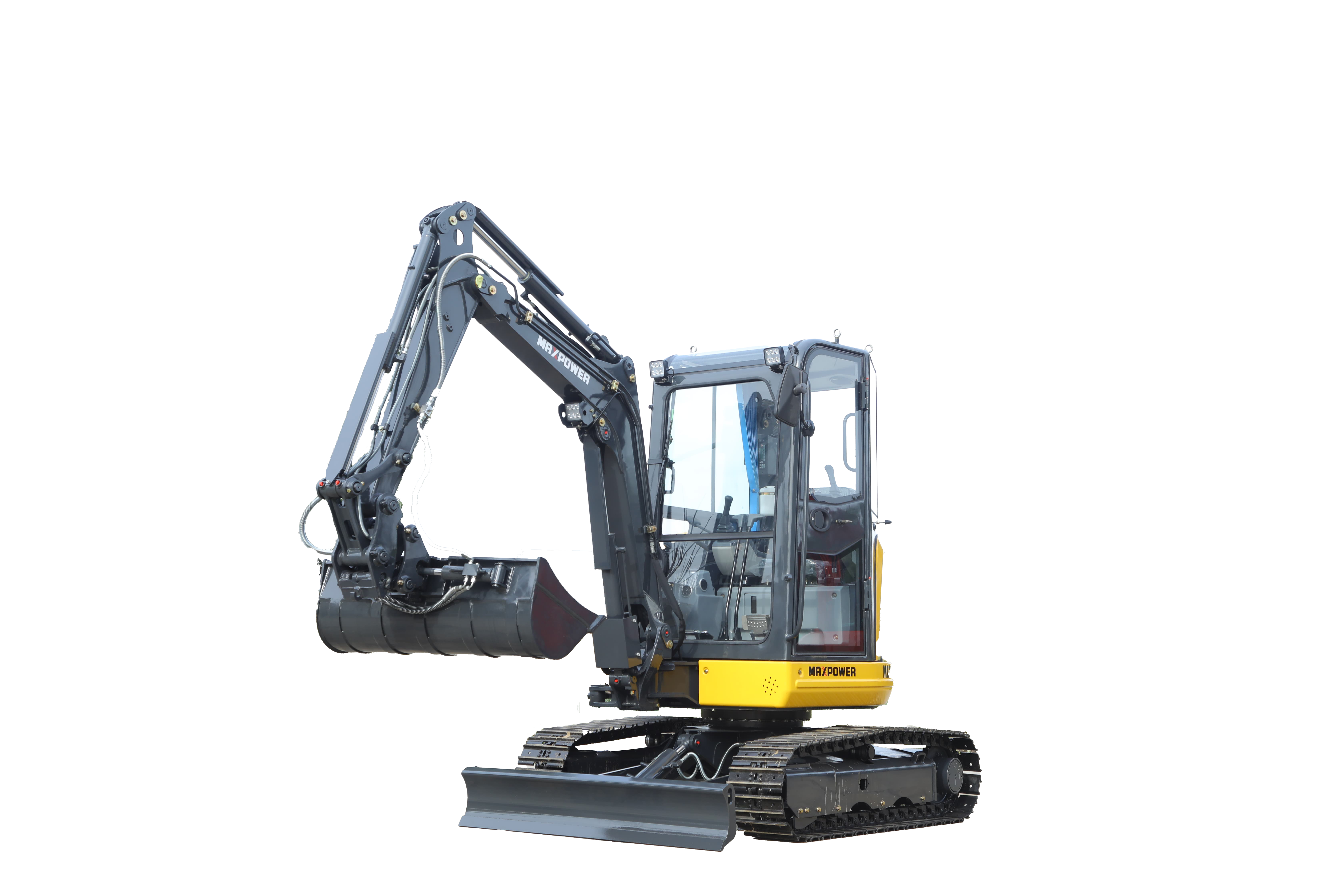

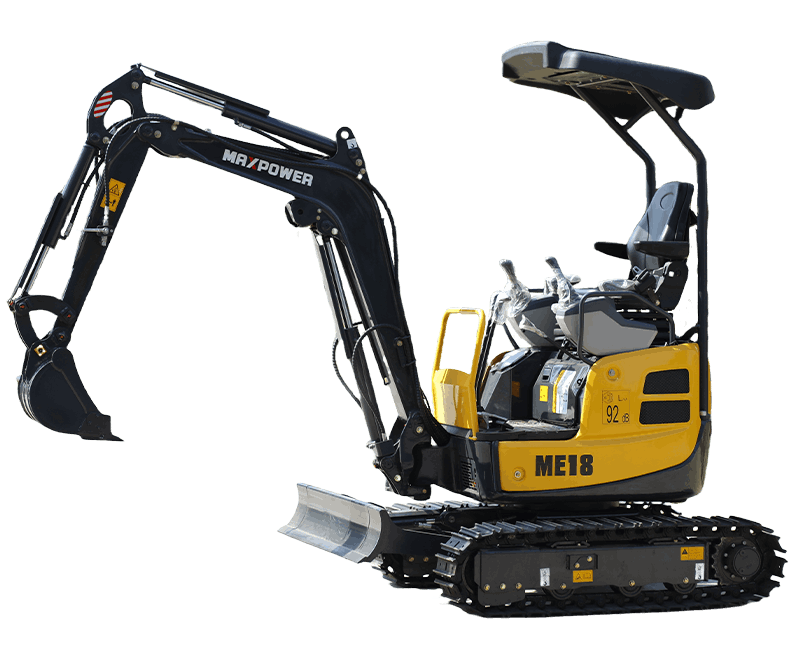

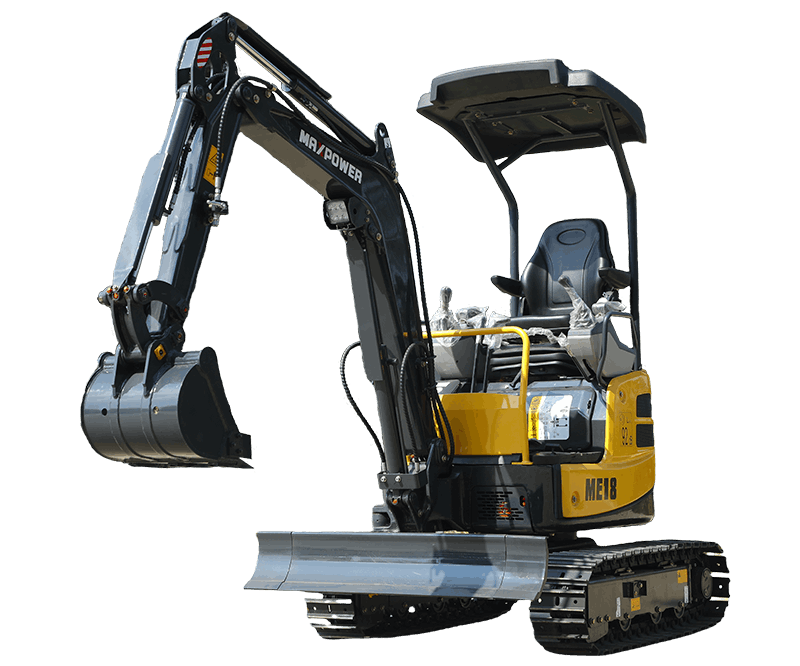

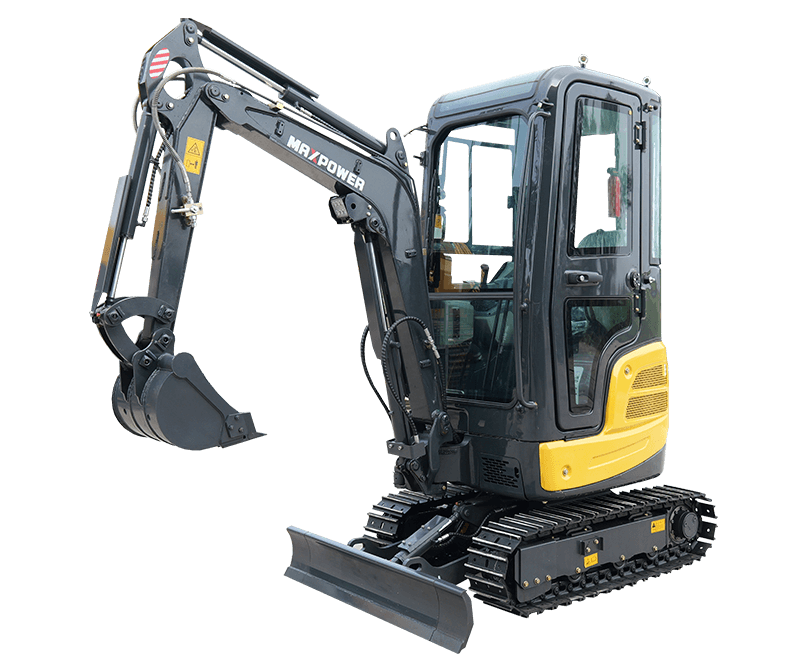

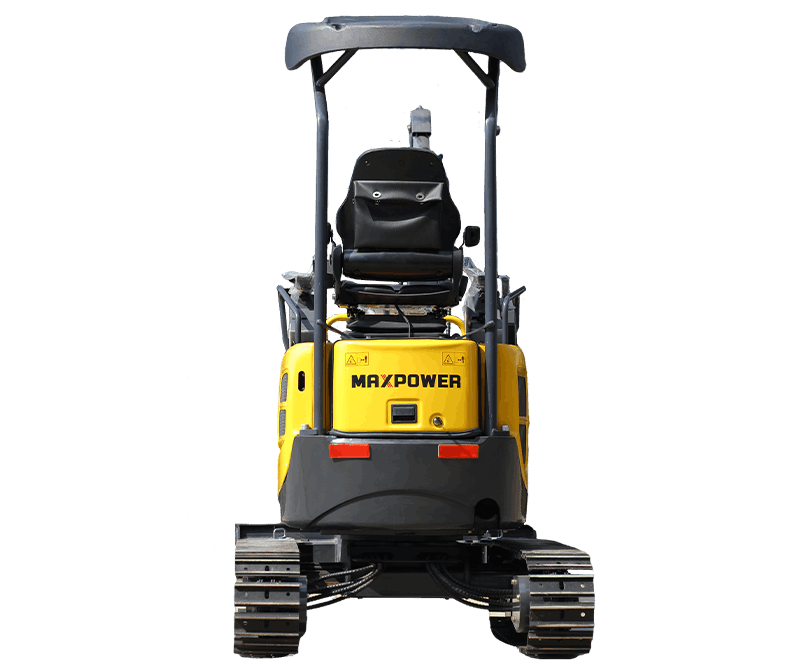

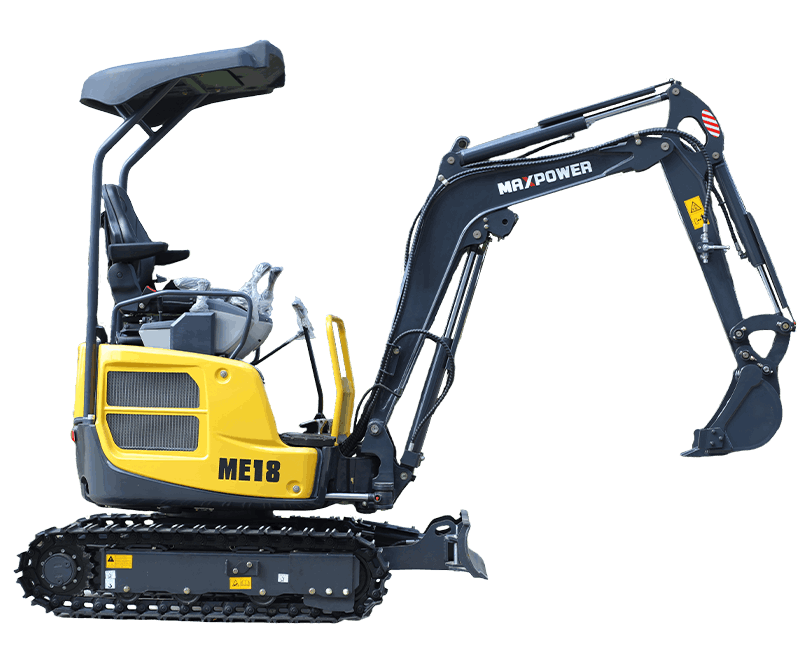

Mini excavator
ME18C
  • Operating weight (T)
    1.86
  • Bucket capacity (m³)
    0.05
  • Engine model
    YANMAR 3TNV7O-SSY ;Yanmar 3TNV70 ; Yanmar 3TNV74F
  • Rated power (kw/r/min)
    10.3/2200 ;10.3/2200 ; 11.2/2400
  • Overview
  • Parameter
  • Related Product
overview

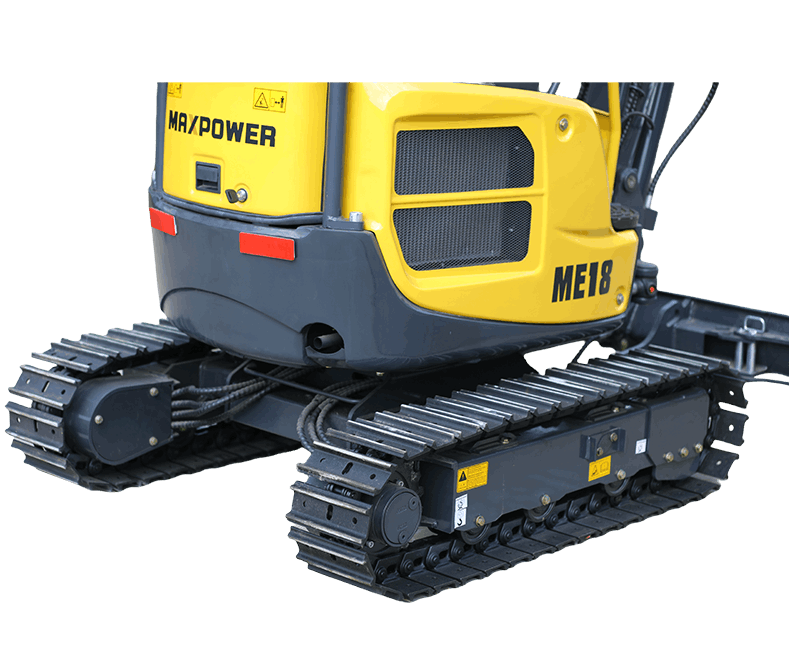

Flexible adjustable chassis
The chassis width can be flexibly adjusted between 720mm and 1050mm to adapt to different working conditions. When narrow, it easily traverses narrow areas; when wide, it increases the ground contact area, lowers the center of gravity, and enhances stability and safety on soft and complex terrains.

Powerful deflection feature
The working device can tilt left and right by up to 60 degrees and 45 degrees, respectively. Combined with the vehicle's rotation, it can excavate parallel to walls in narrow spaces, adapting to extreme urban conditions and expanding operational capabilities and scenarios.

High-efficiency power system
Equipped with a Yanmar engine, it is durable and has a long lifespan. The turbocharging and indirect injection technology optimizes fuel atomization, enhances combustion efficiency, provides powerful performance, and adapts to harsh working conditions.

Universal tool interface

Design standardized attachment interfaces to seamlessly connect various attachments such as hydraulic hammers, grapples, and pile drivers, meeting the needs of different engineering projects in urban construction, landscaping, and water conservancy.

Parameter
item unit Parameter
Operating weight T 1.86
Bucket capacity 0.05
Engine model - YANMAR 3TNV7O-SSY ;Yanmar 3TNV70 ; Yanmar 3TNV74F
Rated power kw/r/min 10.3/2200 ;10.3/2200 ; 11.2/2400
Hydraulic pump model - LX10VO28/TFA10V28
Maximum flow (L/min) - 61.6/67.2
Overall length mm 3460
Overall width mm 950/1280
Overall height (to top of boom) mm 1450
Overall height (to top of cab) mm 2370
Arm length mm 950
Boom length mm 1720
Blade width*height,mm 757/950(with connecting plate)*226
