Maxpower Construction Machinery Manufacturer
Specialty Excavators

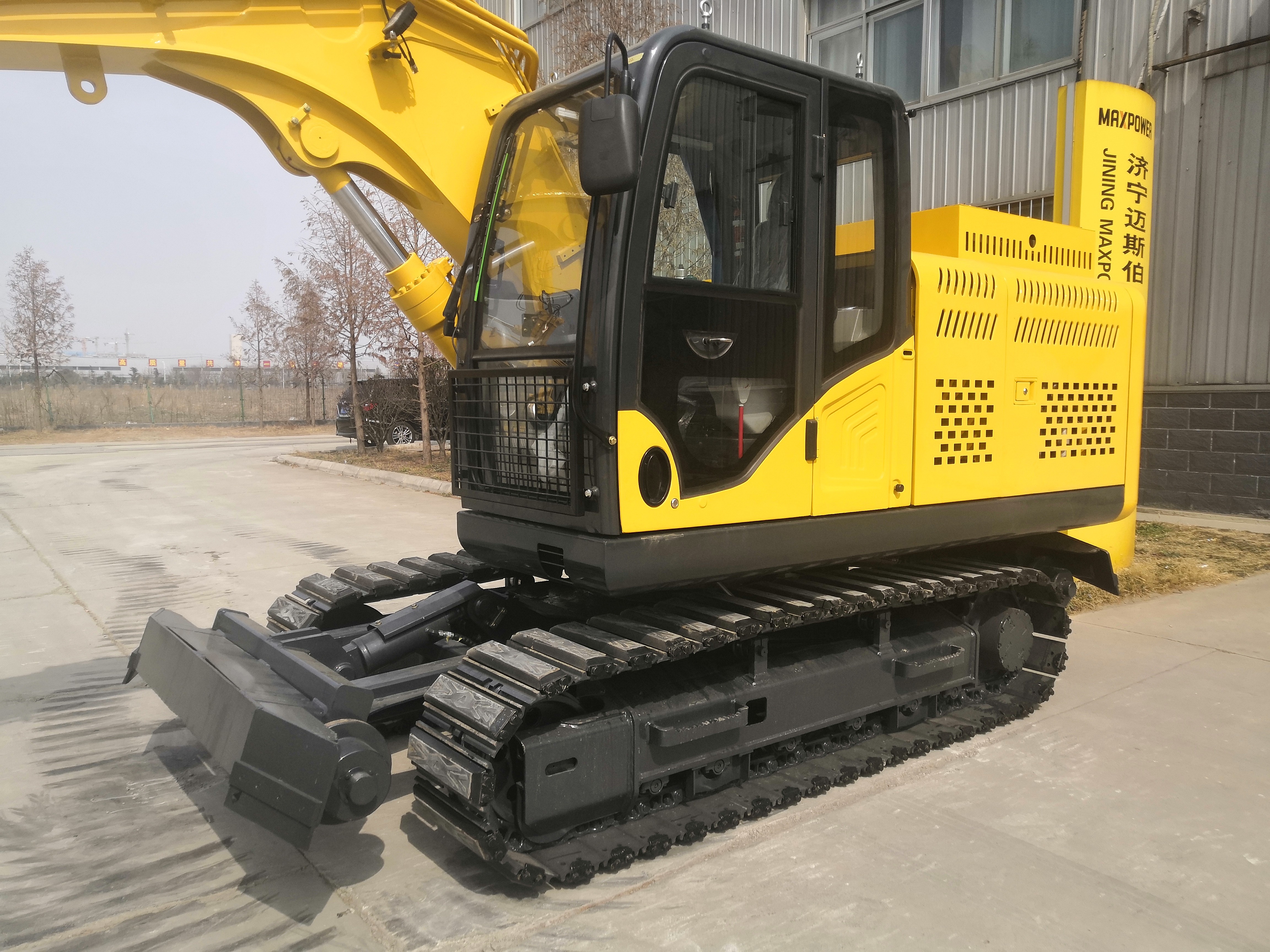

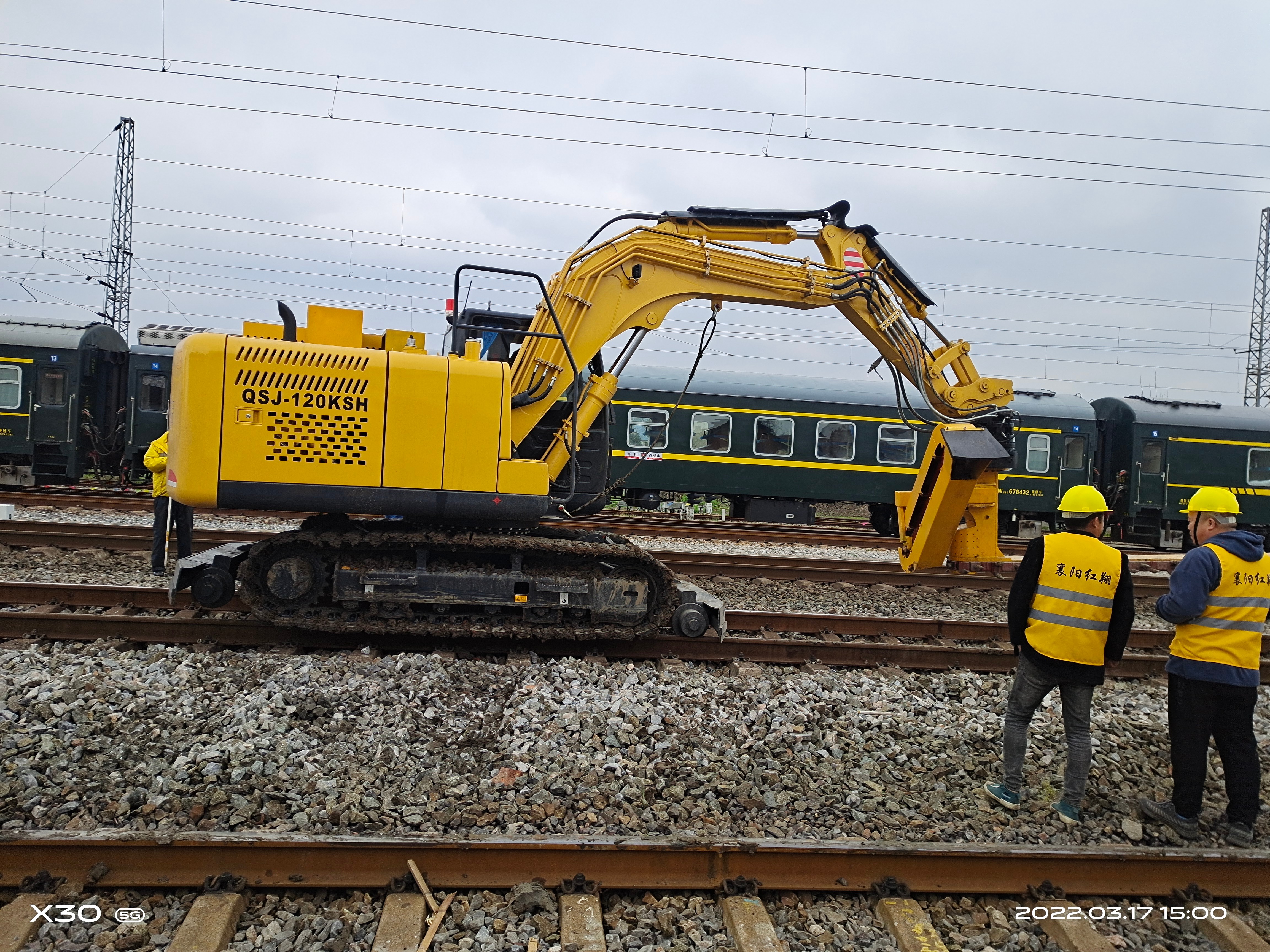

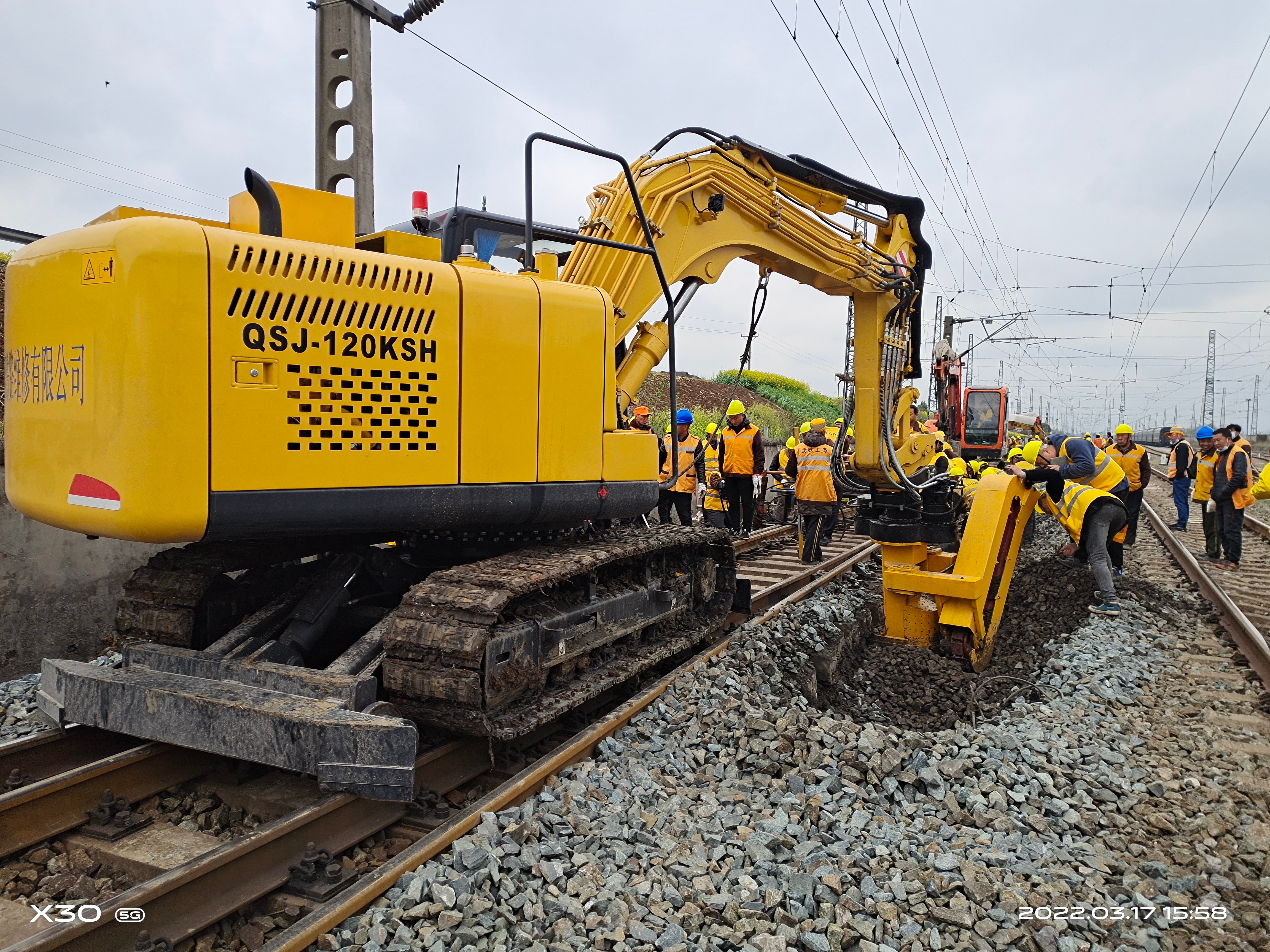

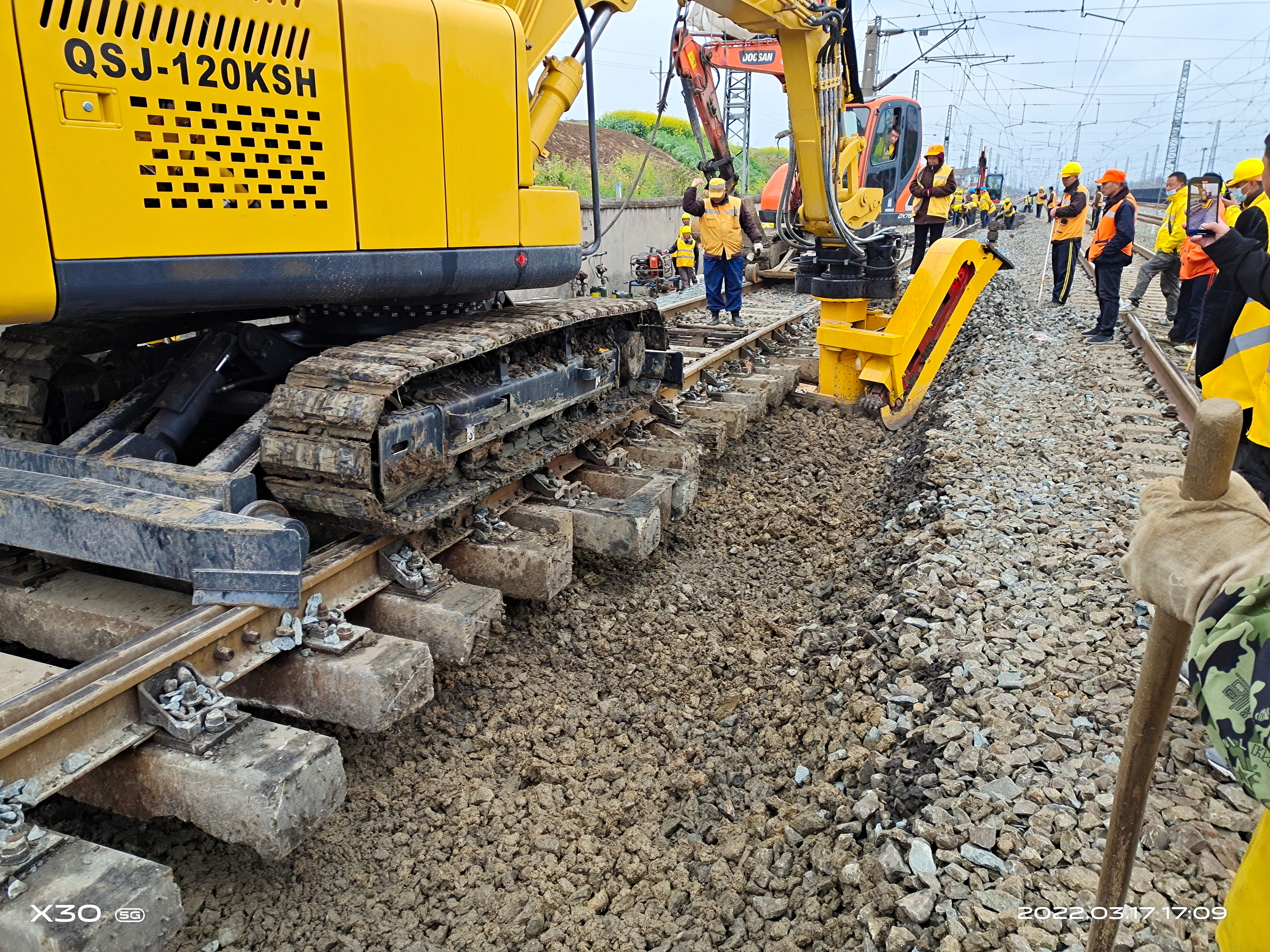

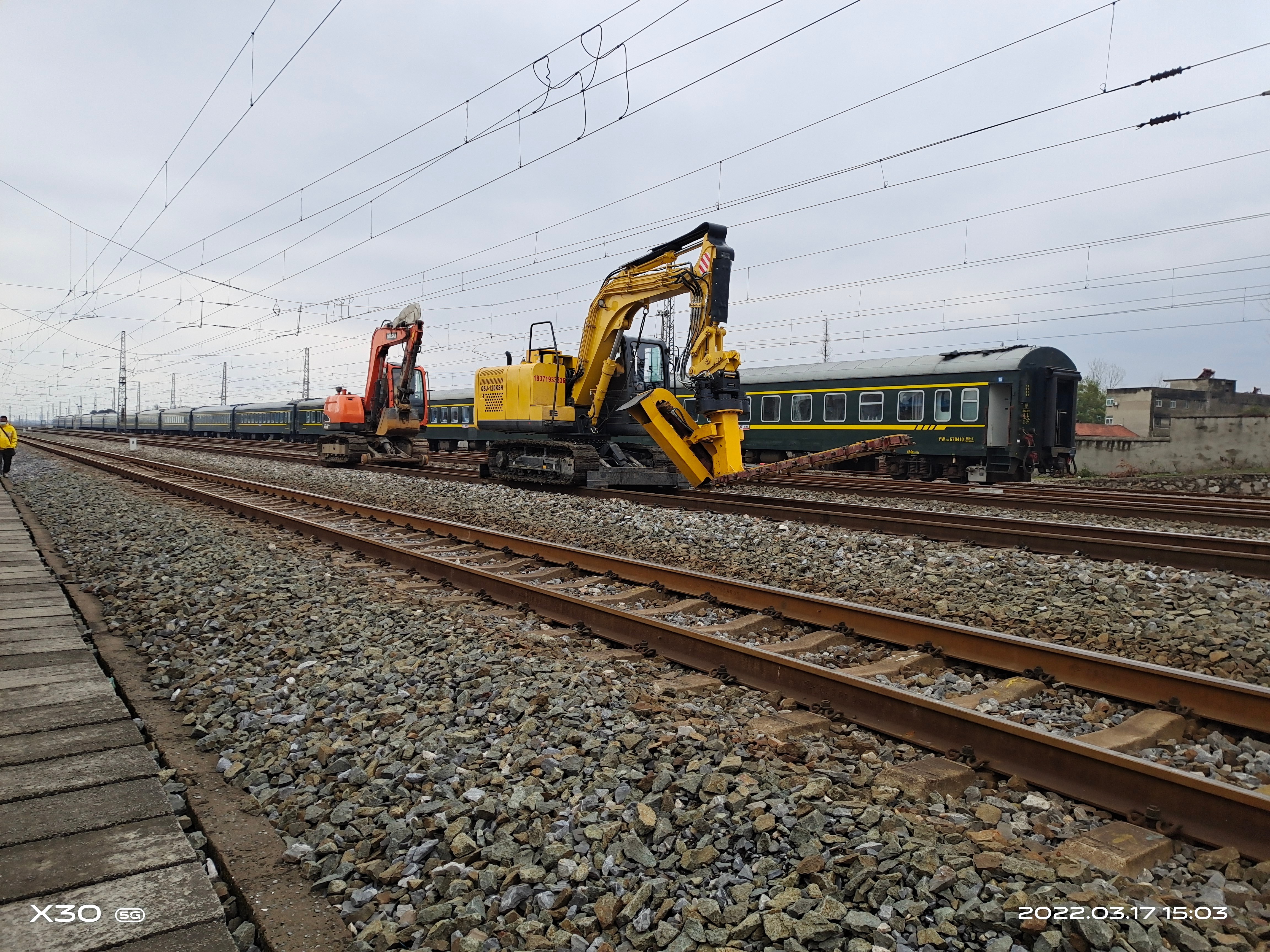

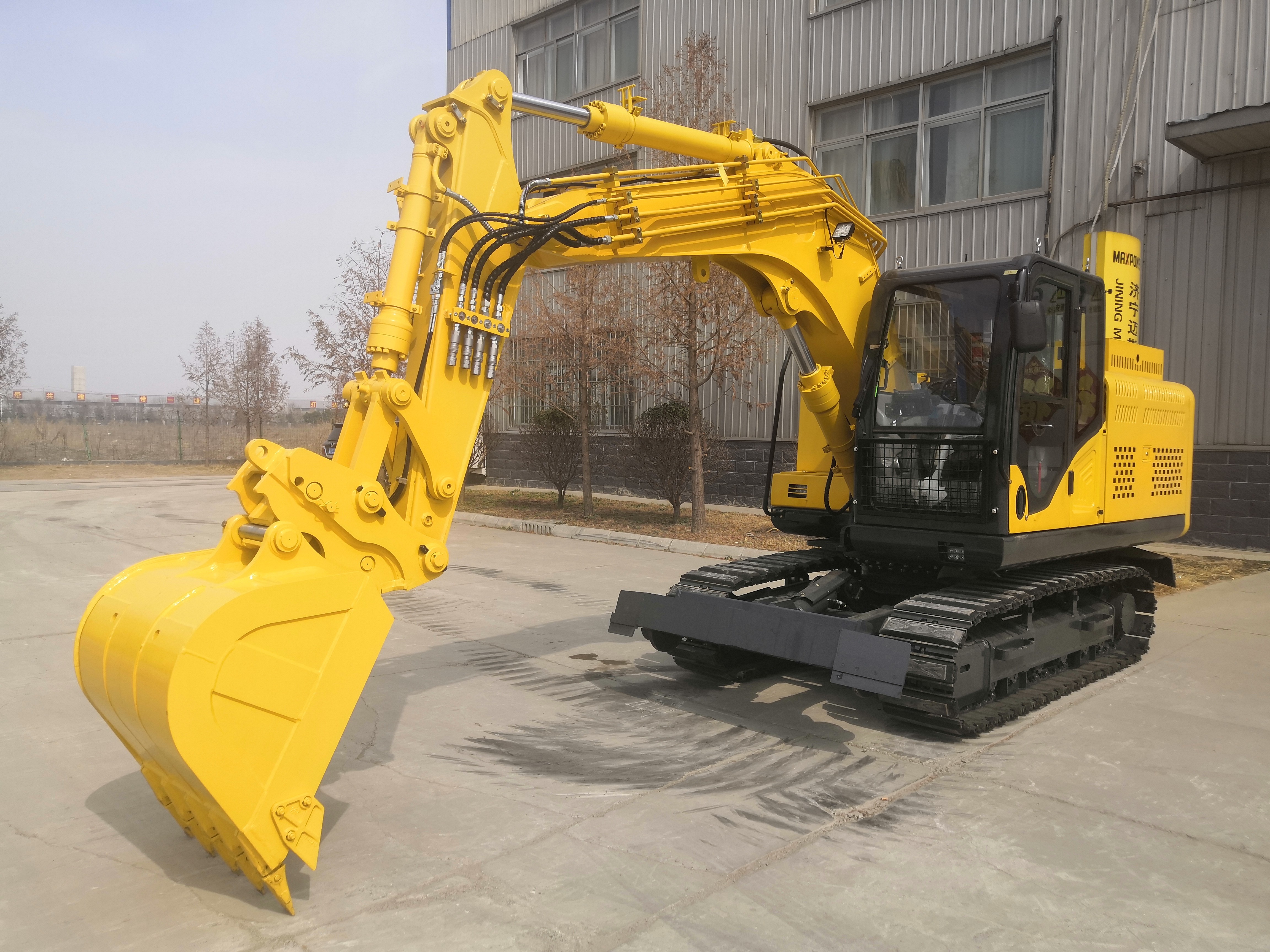

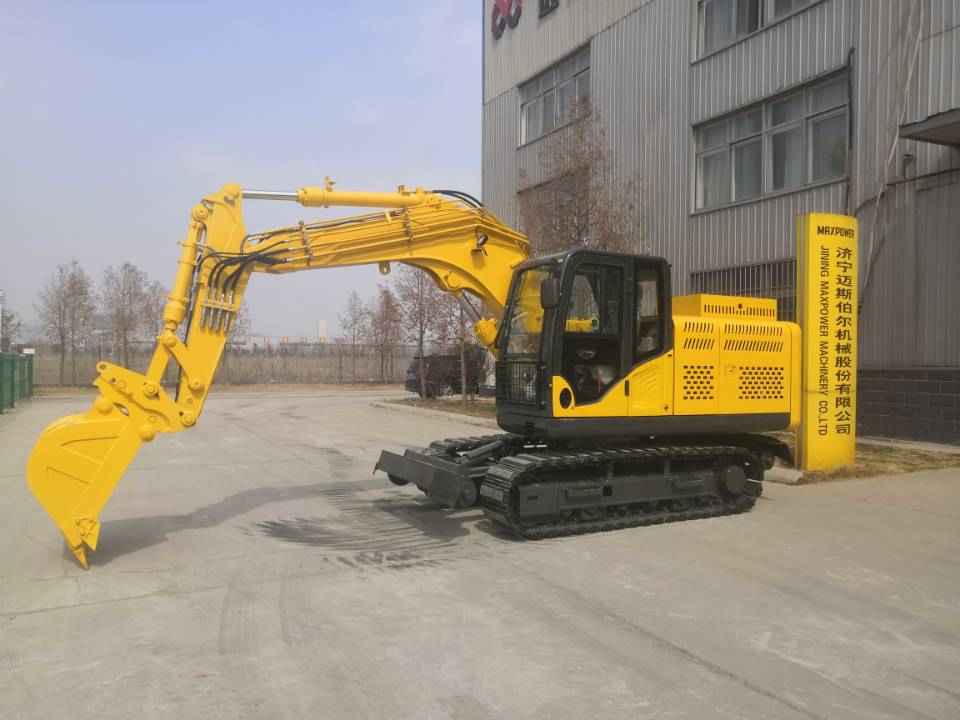

QSJ-120KSH
-
Operating weight (T)13.5
-
Bucket capacity (m³)0.4
-
Engine modelMitsubishi
-
Rated power (kw/r/min)118/2000
- Parameter
- Related Product
Parameter
| item | unit | Parameter |
|---|---|---|
| Operating weight | T | 13.5 |
| Bucket capacity | m³ | 0.4 |
| Engine model | - | Mitsubishi |
| Rated power | kw/r/min | 118/2000 |
| Hydraulic pump model | - | 中航力源L8V0107 |
| Maximum flow （L/min) | - | 214×2 |
| Overall length | mm | 6635 |
| Overall width | mm | 2126 |
| Overall height （to top of boom） | mm | 2700 |
| Overall height （to top of cab） | mm | 2663 |
| Arm length | mm | 1430 |
| Boom length | mm | 3350 |
| Blade | width*height,mm | |
| Max. Blade lifting height | mm | |
| Max. Blade digging depth | mm |
