Parameter

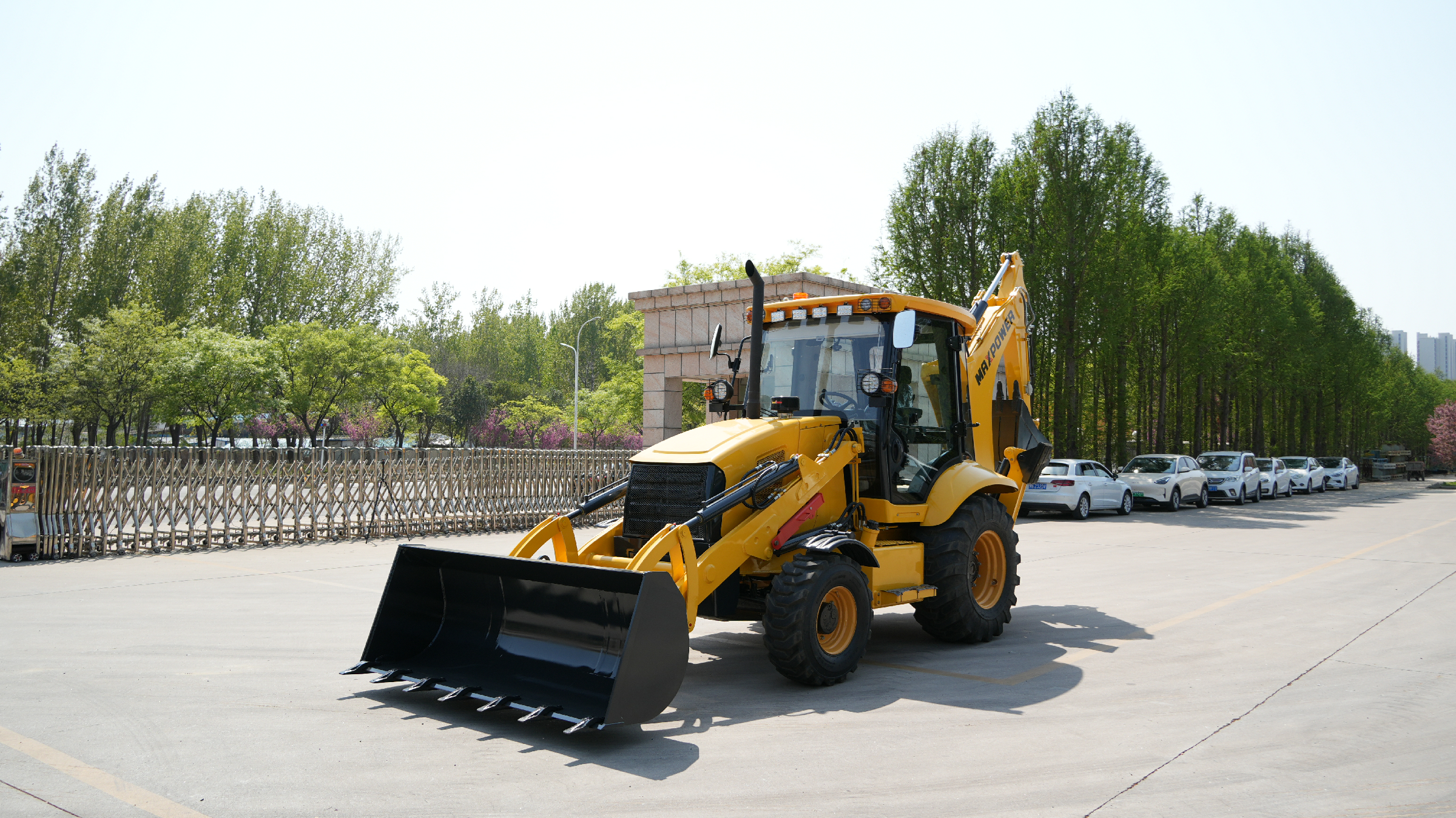

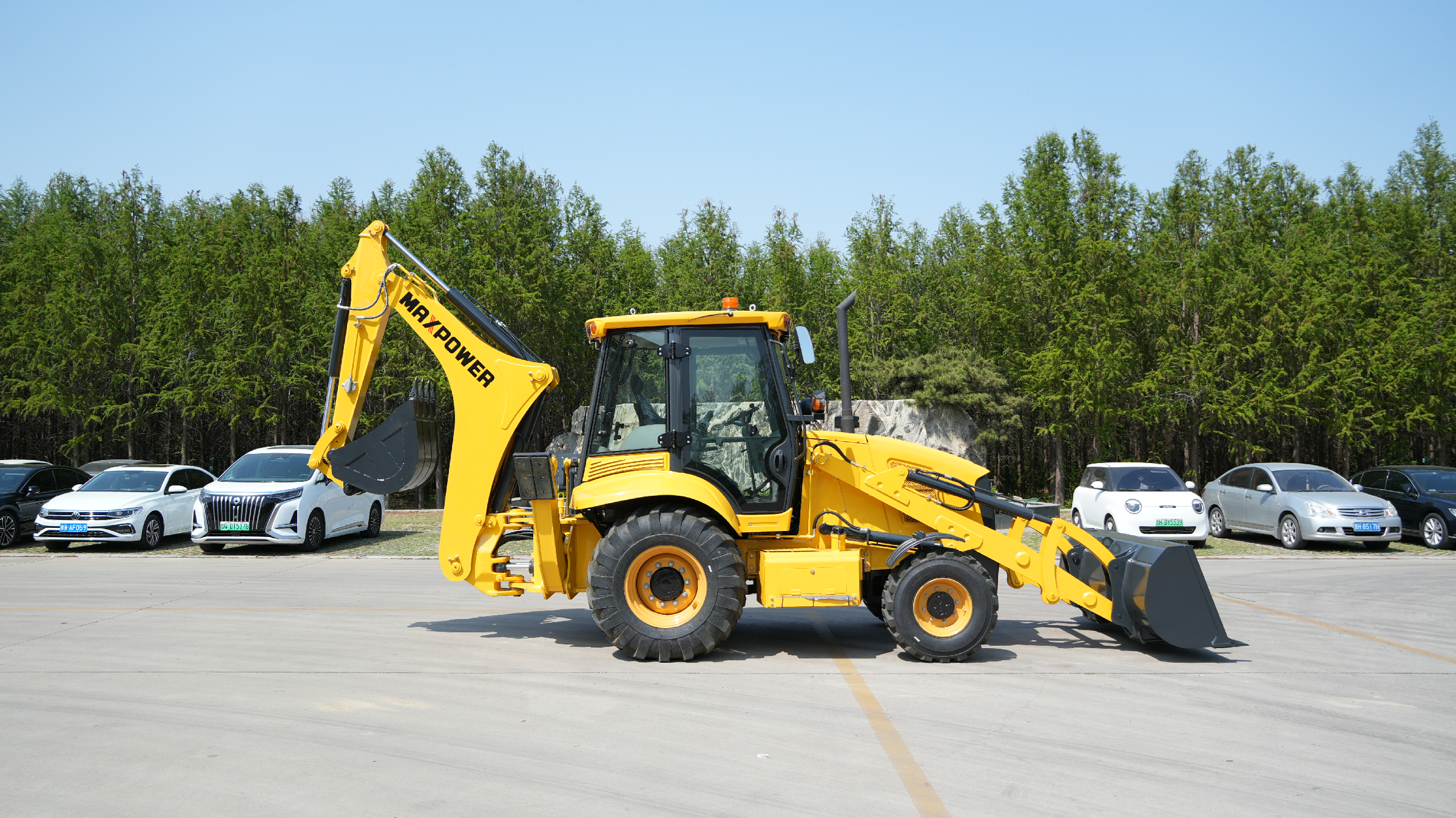

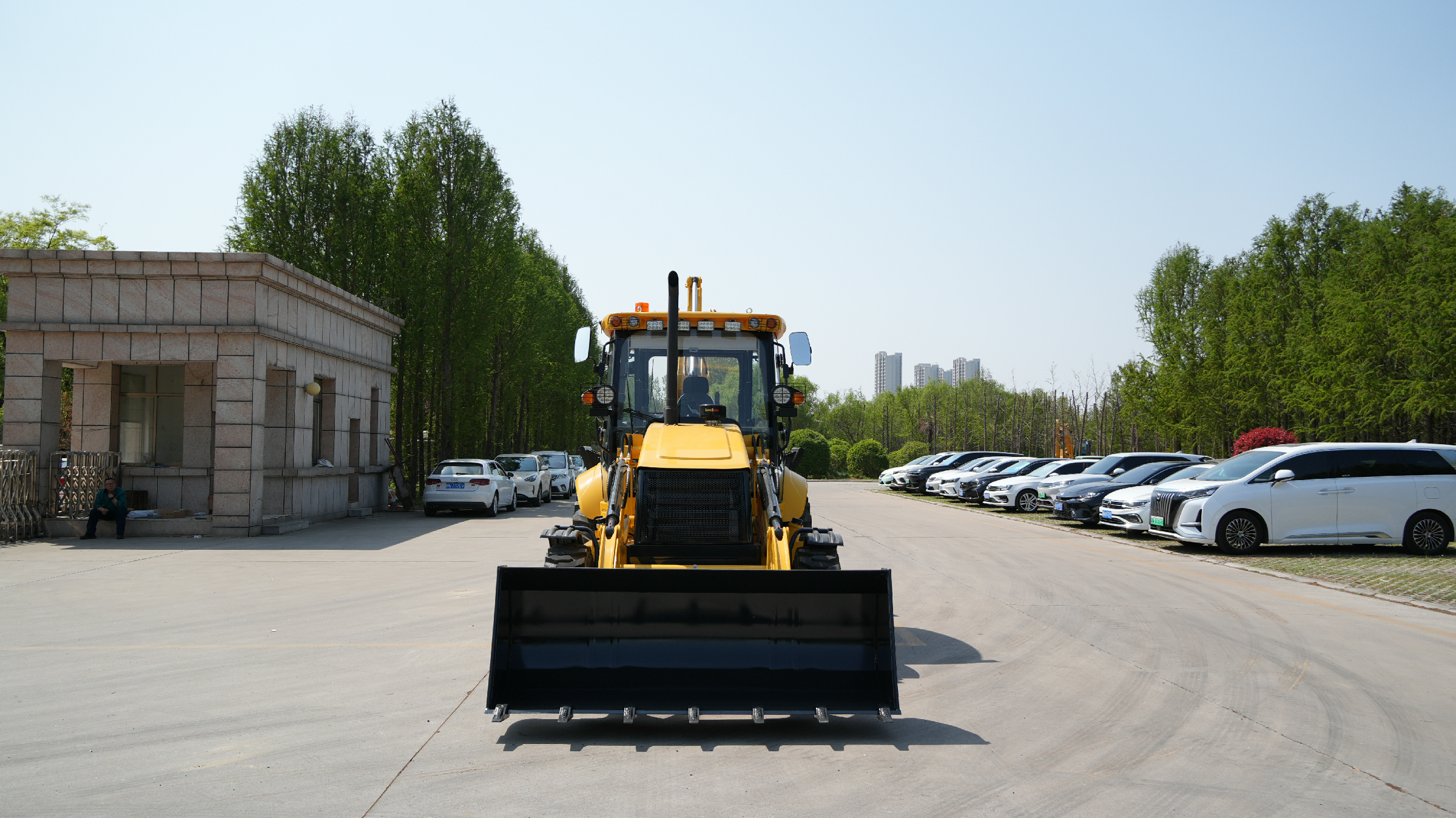

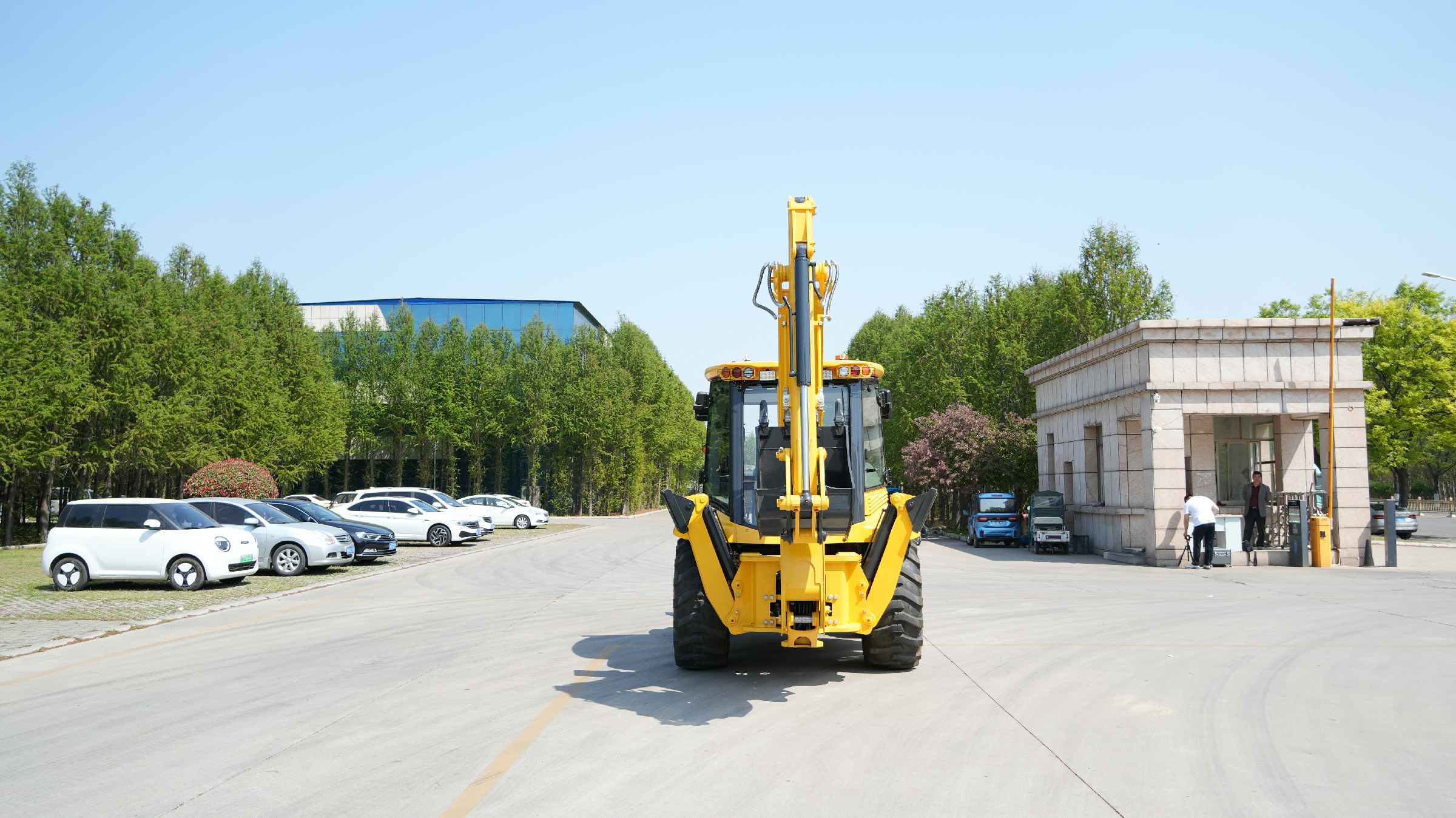

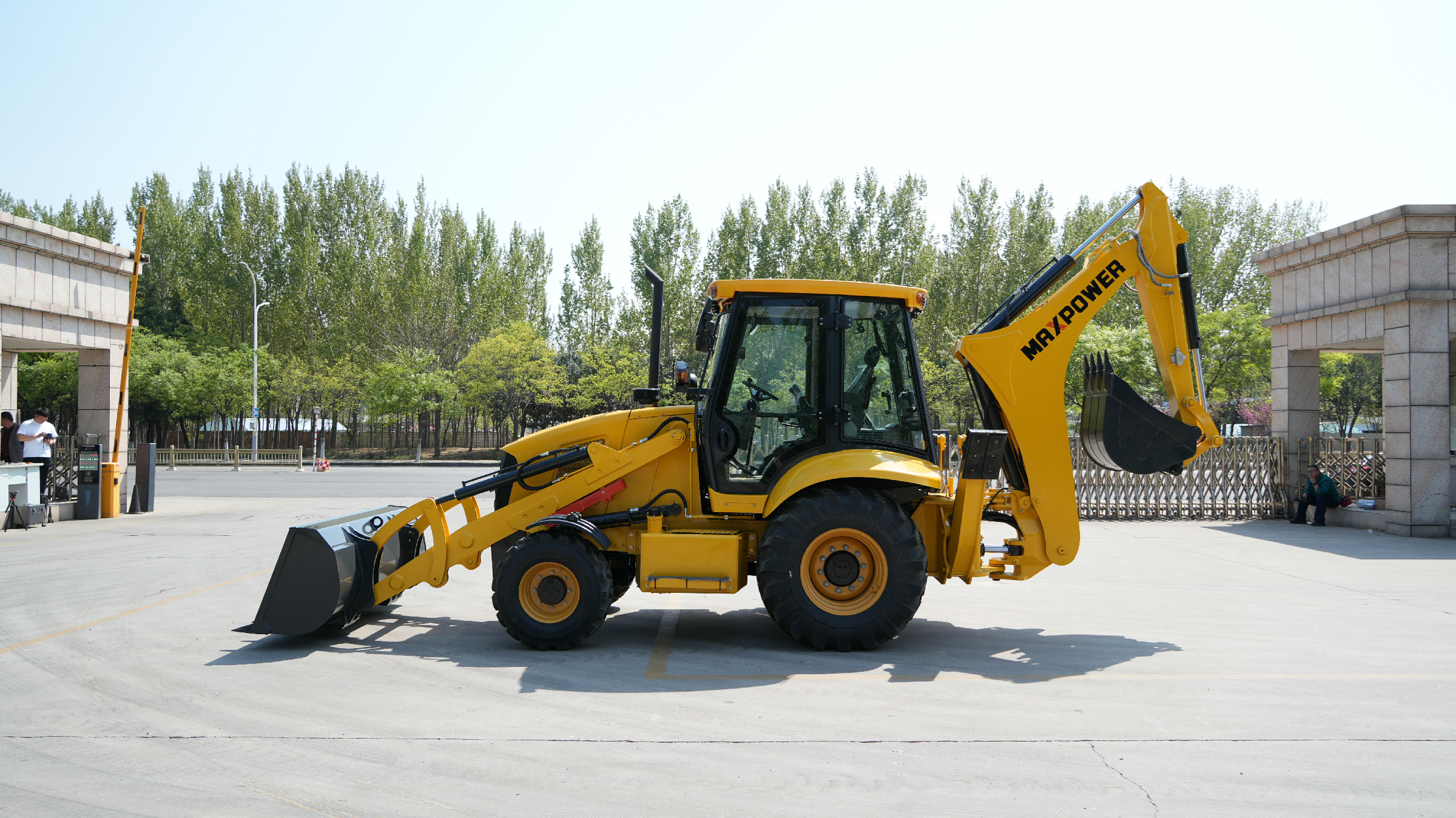

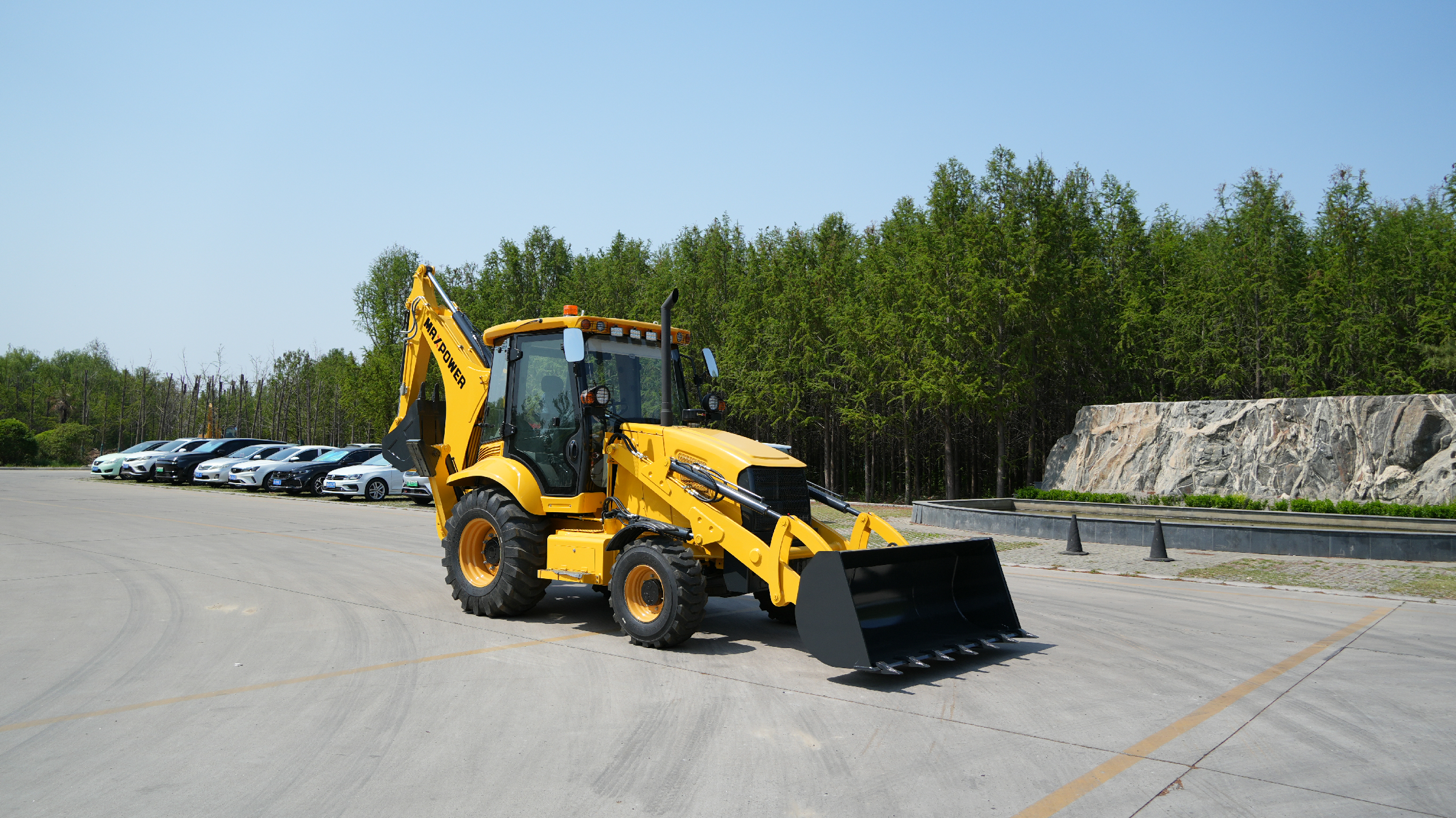

| Model | MEL880A （大小轮 A支腿） | |||
| power system | Model | YC-4A105Z | Cummins 4BTA5.9-C110-11 | |
| Total power/rotational speed(kW/rpm) | 75/2200 | 82/2200 | ||
| Displacement | 4.836 | 3.9 | ||
| Number of cylinders - Cylinder diameter - Stroke | 4-108-132 | 4-102-120 | ||
| Intake method | Turbocharging | Turbocharging | ||
| Working mode of fuel system | Direct injection | Direct injection | ||
| Emission standard | Country II | Country II | ||
| Transmission and steering | Steering angle | ±40° | ±40° | |
| Minimum turning radius (mm) | 7144mm | 7144mm | ||
| Steering bridge brand | CARRARO | CARRARO | ||
| Hydraulic torque converter model | CA359169S(Transmission+hydraulic torque converter) | CA359169S(Transmission+hydraulic torque converter) | ||
| Transmission type | 4 Forward/4 Backward | 4 Forward/4 Backward | ||
| Maximum speed | 34-39 Km/h | 34-39 Km/h | ||
| Tires and brakes | Front wheel specifications | 14-17.5 | 14-17.5 | |
| Rear wheel specifications | 19.5L-24 | 19.5L-24 | ||
| Service brake/parking brake | Built in wet bridge/handbrake | Built in wet bridge/handbrake | ||
| Basic Parameters | Transportation dimensions - total length (mm) | 8295 | 8295 | |
| Transportation dimensions - total width (mm) | 2360 | 2360 | ||
| Transportation dimensions - total height (mm) | 3838 | 3838 | ||
| System pressure Mpa | 27 | 27 | ||
| Minimum ground clearance (mm) | 351 | 351 | ||
| Operating weight of the whole machine (kg) | 8800 | 8800 | ||
| Wheelbase (mm) | 2230 | 2230 | ||
| Minimum ground clearance (mm) | 351 | 351 | ||
| Front wheel width (mm) | 2207 | 2207 | ||
| Rear wheel width (mm) | 2279 | 2279 | ||
| Fuel tank capacity (L) | 150 | 150 | ||
| Load | Lift load at maximum height (kN) | 88 | 88 | |
| Standard bucket type | Escape Battle | Escape Battle | ||
| Rated load capacity (kg) | 2500 | 2500 | ||
| Loading bucket capacity (m ³) | 1 | 1 | ||
| Loading bucket width (mm) | 2360 | 2360 | ||
| Loading bucket full load lifting time (S) | 3.3 | 3.3 | ||
| Weight of device bucket (kg) | 458 | 458 | ||
| Deflection angle | 178 | 178 | ||
| Excavate | Excavation bucket capacity (m ³) | 0.32 | 0.32 | |
| Maximum digging force of the boom (kN) | 43/42/30.4 | 43/42/30.4 | ||
| Maximum digging force of bucket (kN) | 73.1/72.2/72.2 | 73.1/72.2/72.2 | ||
| Bucket width (mm) | 433 | 433 | ||
| Excavation bucket weight (kg) | 145 | 145 | ||
