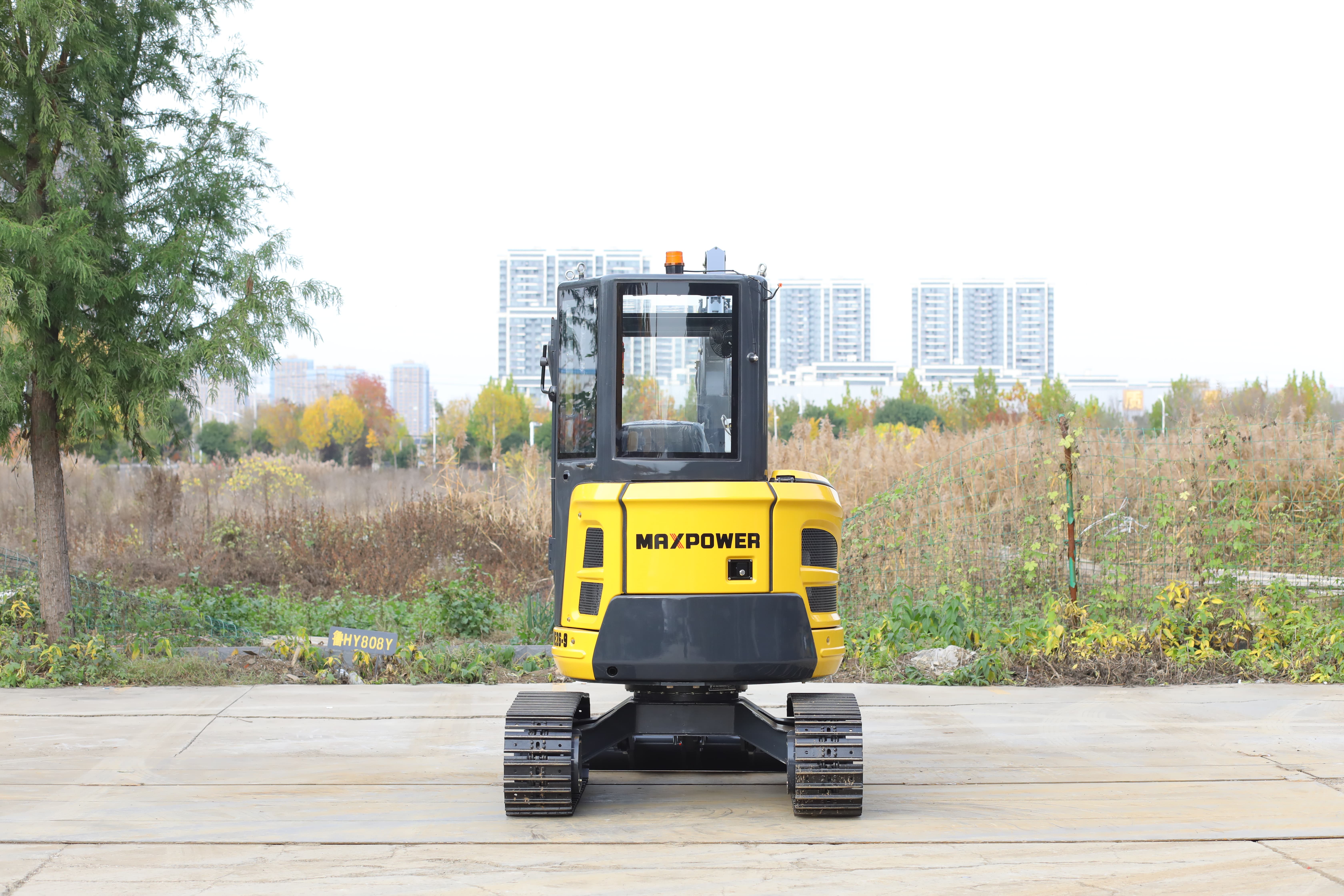

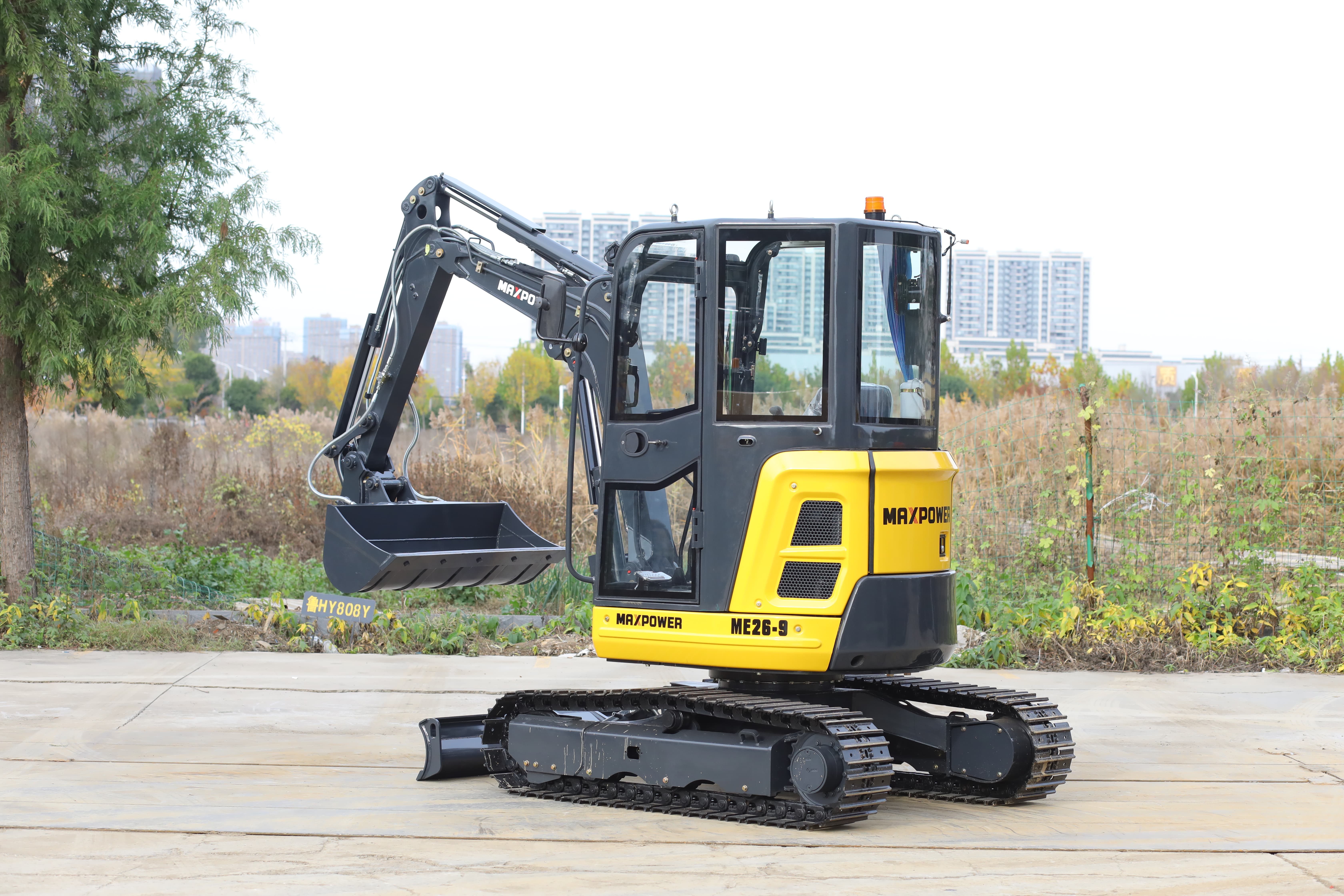

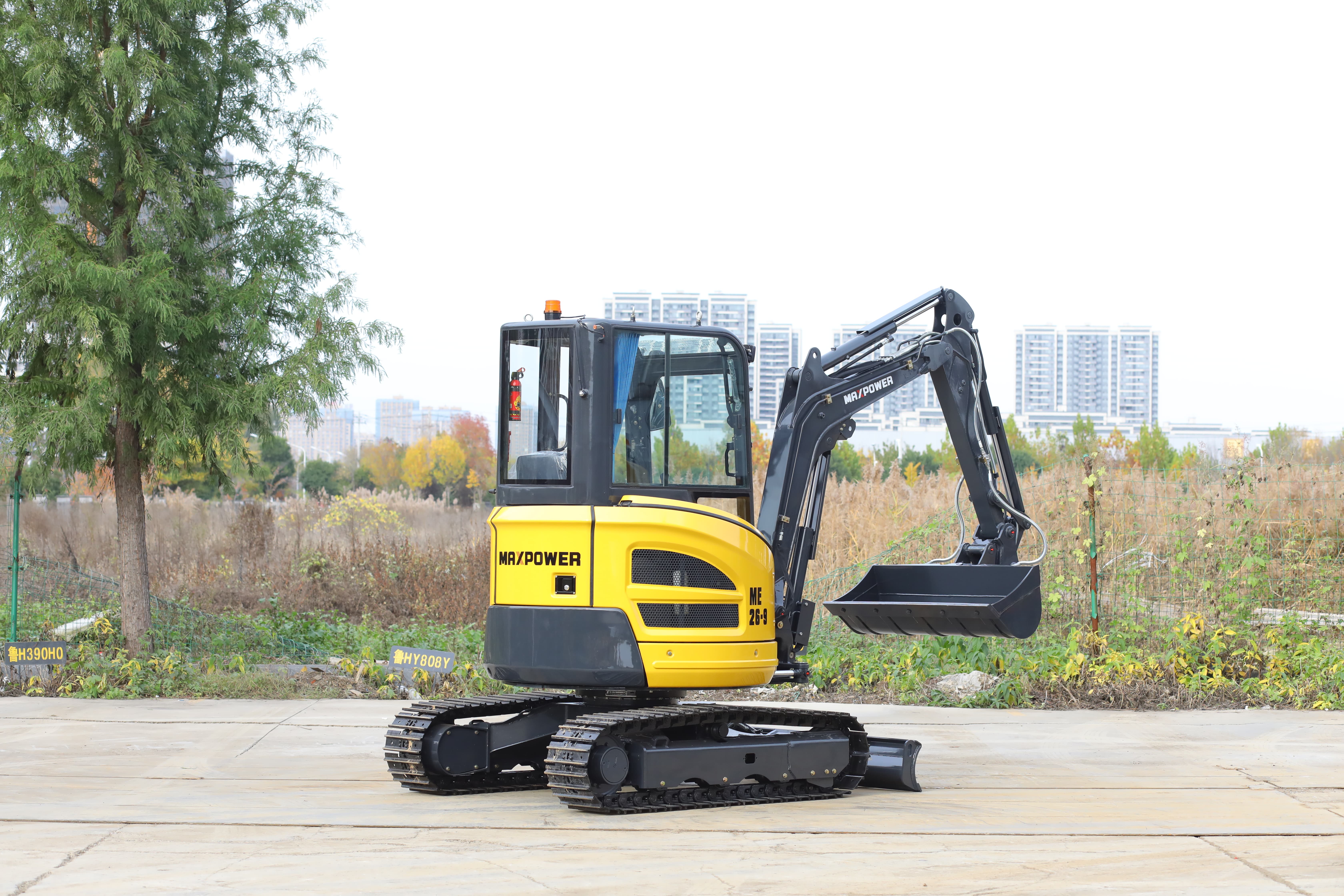

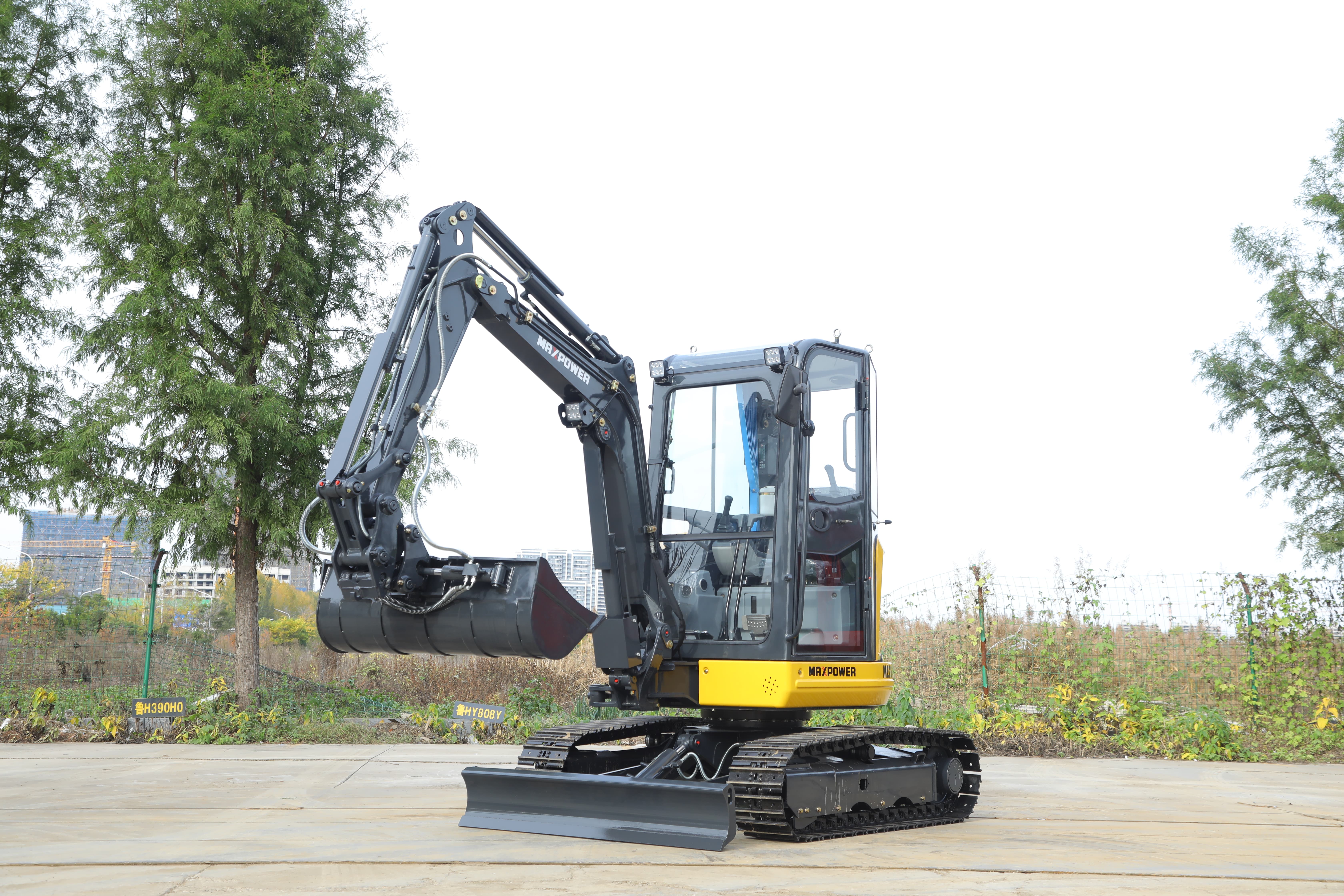

Mini excavator
ME26
  • Operating weight (T)
    2.78
  • Bucket capacity (m³)
    0.08
  • Engine model
    YANMAR 3TNV80F
  • Rated power (kw/r/min)
    15.2/2500
  • Overview
  • Parameter
  • Related Product
overview

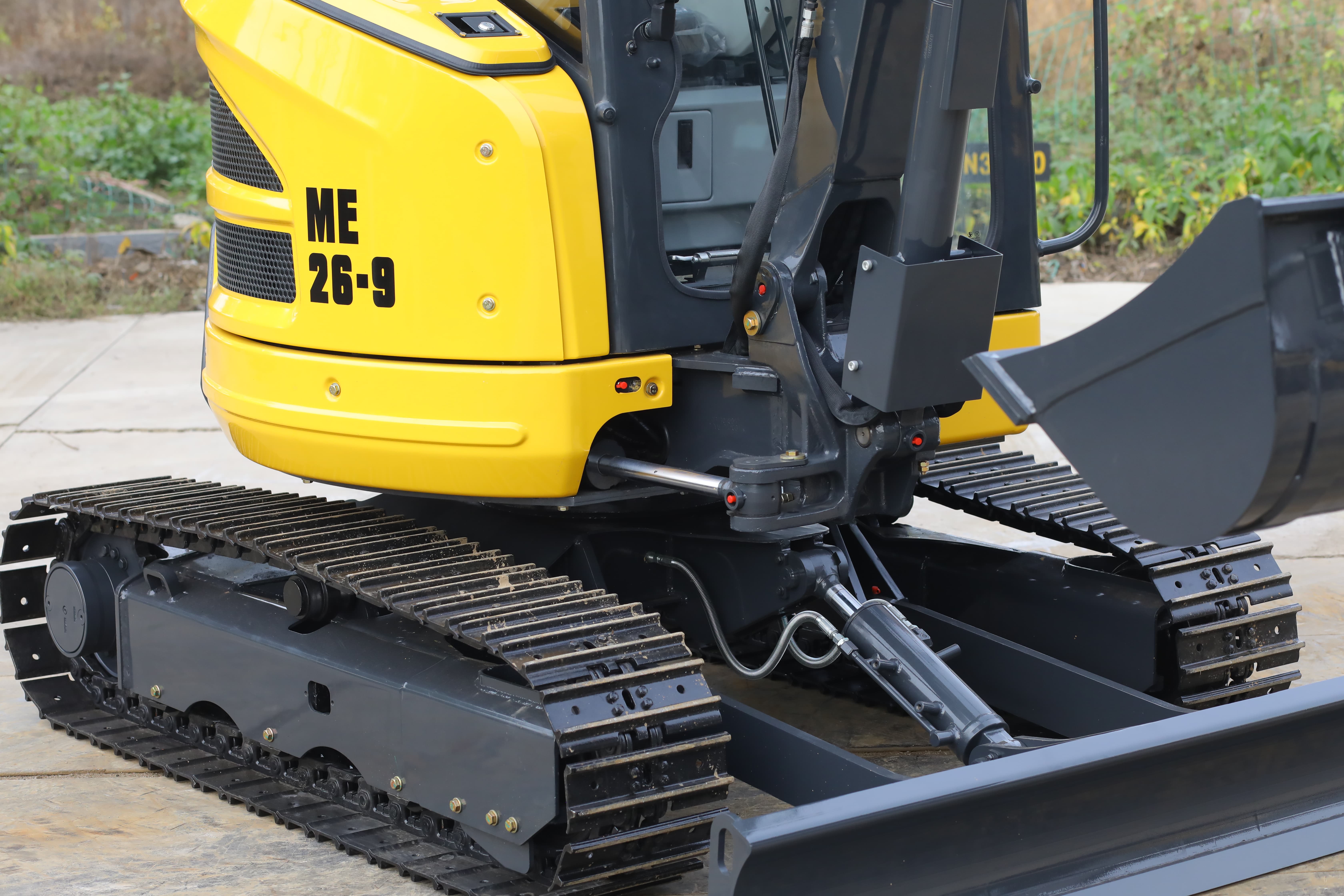

Flexible adjustable chassis
The chassis width can be flexibly adjusted between 720mm and 1050mm to adapt to different working conditions. When narrow, it easily traverses narrow areas; when wide, it increases the ground contact area, lowers the center of gravity, and enhances stability and safety on soft and complex terrains.

Powerful deflection feature
The working device can tilt left and right by up to 60 degrees and 45 degrees, respectively. Combined with the vehicle's rotation, it can excavate parallel to walls in narrow spaces, adapting to extreme urban conditions and expanding operational capabilities and scenarios.

High-efficiency power system
Equipped with a Yanmar engine, it is durable and has a long lifespan. The turbocharging and indirect injection technology optimizes fuel atomization, enhances combustion efficiency, provides powerful performance, and adapts to harsh working conditions.

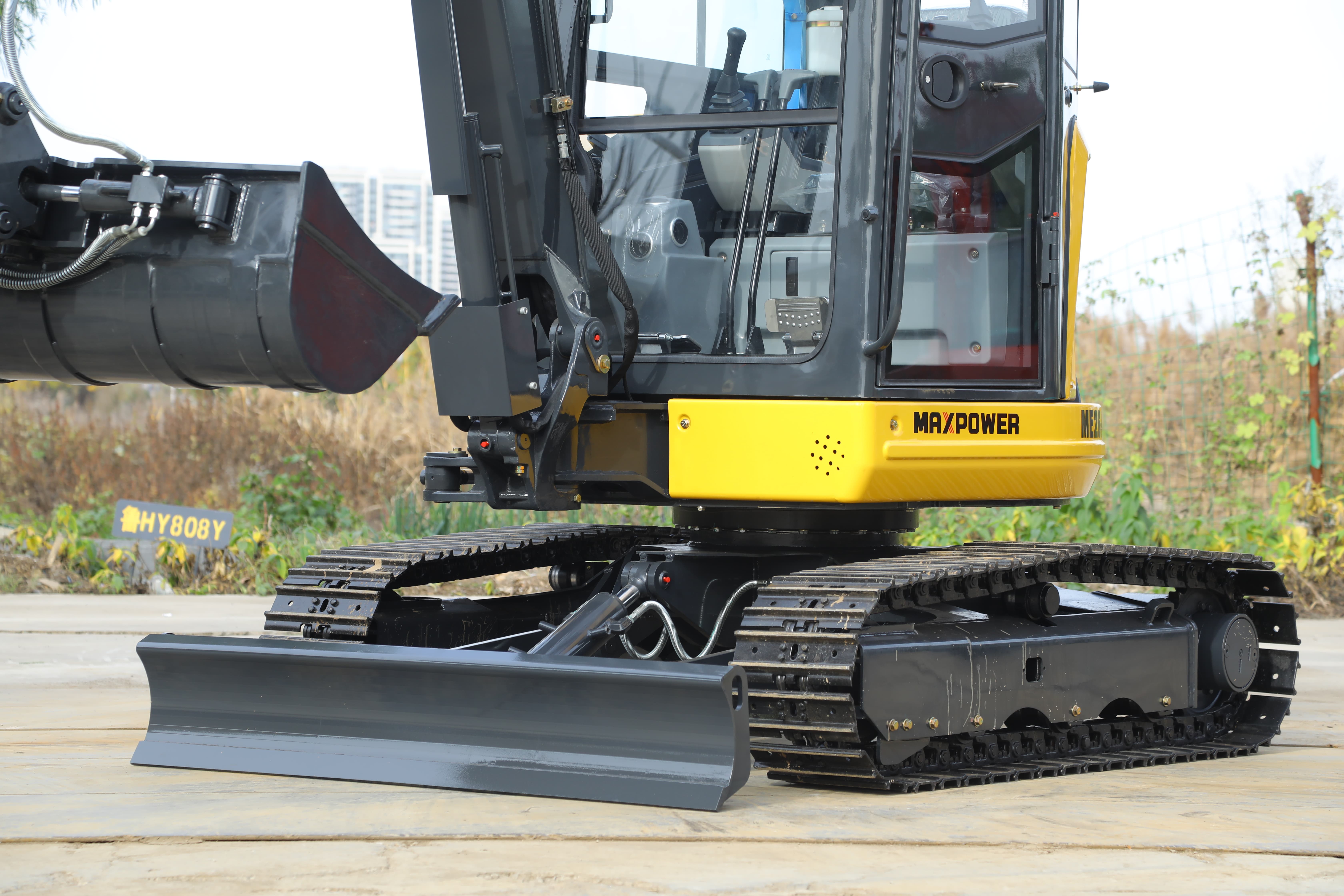

Universal tool interface

Design standardized attachment interfaces to seamlessly connect various attachments such as hydraulic hammers, grapples, and pile drivers, meeting the needs of different engineering projects in urban construction, landscaping, and water conservancy.


Parameter
item unit Parameter
Operating weight T 2.78
Bucket capacity 0.08
Engine model - YANMAR 3TNV80F
Rated power kw/r/min 15.2/2500
Hydraulic pump model - Inline HP5V45
Maximum flow (L/min) - 80
Overall length mm 4005
Overall width mm 1600
Overall height (to top of boom) mm 1650
Overall height (to top of cab) mm 2560
Arm length mm 1155
Boom length mm 2015
Blade width*height,mm 1550*276
