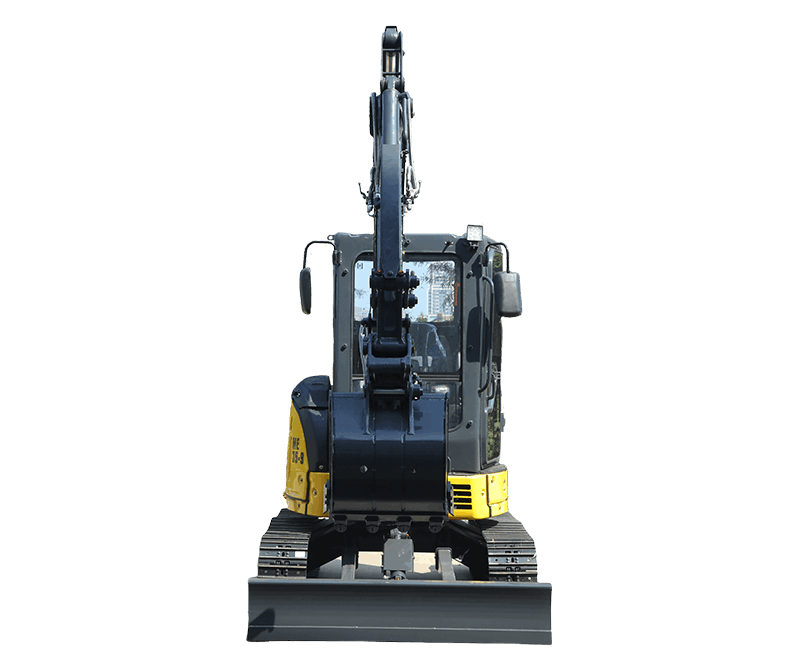

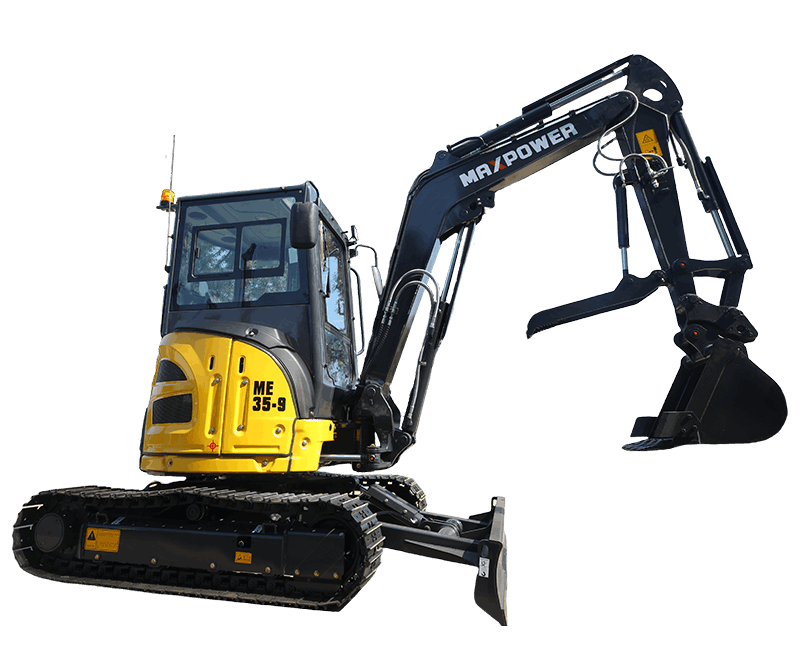

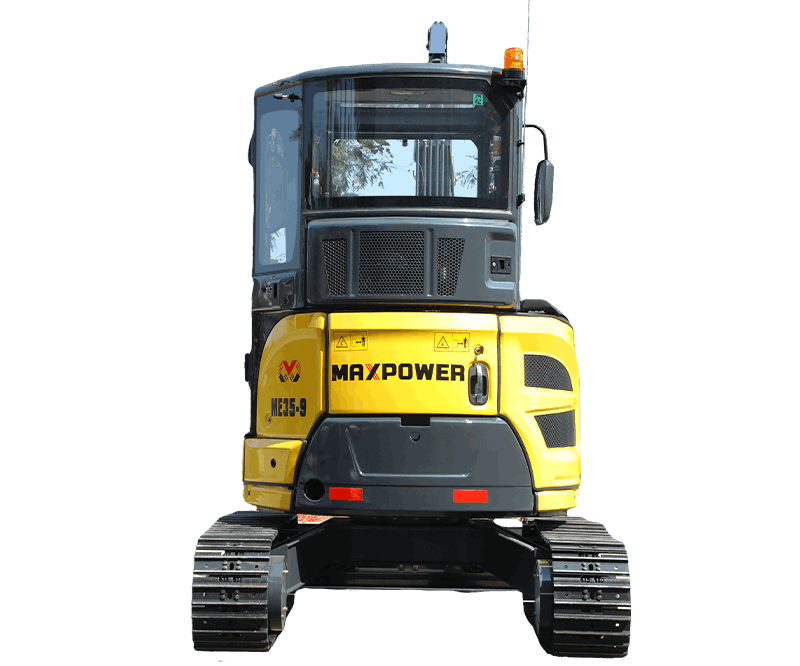

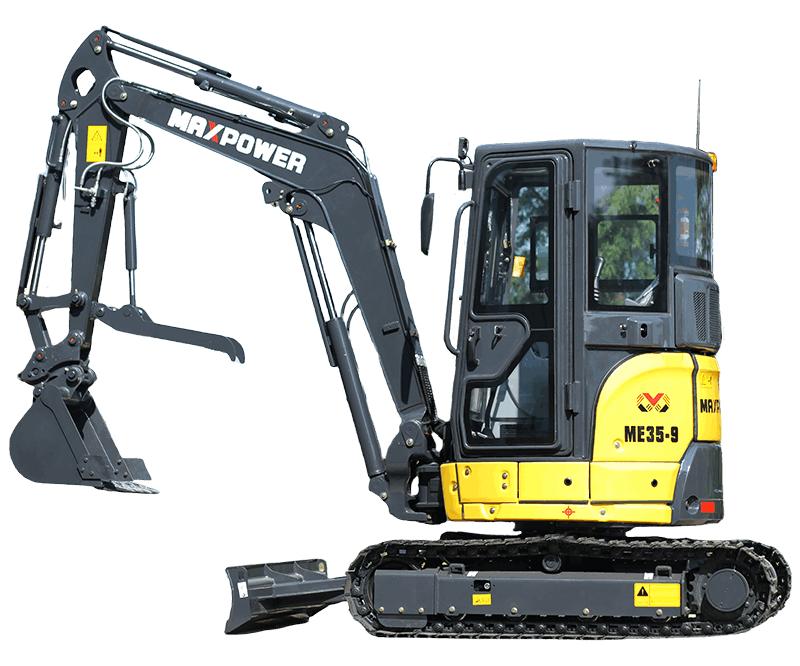

Mini excavator
ME35
-
Operating weight (T)3.75
-
Bucket capacity (m³)0.12
-
Engine modelYANMAR 3TNV88-BSSY ；YAMMAR 3TNV88 ；YAMMAR 3TNV88F
-
Rated power (kw/r/min)19.6/2200 ；22.2/2400 ; 18.2/2200
- Overview
- Parameter
- Related Product
overview
Strong momentum
Equipped with a YAMMAR engine that meets the National IV standard, it is powerful and environmentally friendly. Widely used in the micro-excavation field, recognized by customers, durable, fuel-efficient, and easy to maintain.
Advanced Hydraulics
Equipped with Hengli/LEADWELL customized pump and valve systems, high reliability, low-pressure loss, and smooth operation. The load-sensitive system intelligently allocates flow, and precisely matches power with gear speed adjustments, optimizing efficiency and fuel consumption.
Bucket upgrade
The bucket has been fully optimized, with an excavation force of 30kN, enhancing efficiency. The vertical pin of the tooth is fixed, the flat design reduces resistance, and replacement is convenient. Scientific wheelbase and double support bearing sprocket design enhance stability and eliminate jamming hazards.
Comfortable experience
High-back shock-absorbing seat, lower SIP height. Optimize the muffler and wrap it with thermal insulation, reducing noise and providing insulation for a comfortable driving experience.
Flexible configuration:
Standard cab, suitable for narrow and low spaces, meeting diverse needs.
Parameter
| item | unit | Parameter |
|---|---|---|
| Operating weight | T | 3.75 |
| Bucket capacity | m³ | 0.12 |
| Engine model | - | YANMAR 3TNV88-BSSY ；YAMMAR 3TNV88 ；YAMMAR 3TNV88F |
| Rated power | kw/r/min | 19.6/2200 ；22.2/2400 ; 18.2/2200 |
| Hydraulic pump model | - | LX10VO45/HP5V45 |
| Maximum flow （L/min) | - | 99/99 |
| Overall length | mm | 4800 |
| Overall width | mm | 1740 |
| Overall height （to top of boom） | mm | 1715 |
| Overall height （to top of cab） | mm | 2480 |
| Arm length | mm | 1370 |
| Boom length | mm | 2487 |
| Blade | width*height,mm | 1750*318 |
